Electric Hydrostatic Test Pumps

Hydro-Testing guarantees you a quality leak free system. Our line of electric hydrostatic testing units consists of our most popular 6334 Series Hydro-Test Hydrostatic Testers (pressures up to 1000 PSI), our HT Series Electric High Pressure Testers (pressure up to 3000 PSI), our Drafting Series (pressures up to 1000 PSI), and our newest GPCG Series. We also offer a second generation CT63 Cart to make your job easier! Read below to learn the differences and find the perfect testing unit for your needs.

Contact us for any product questions or to order!

Hydrostatic Testers

6334 Series

Our Most Popular Hydro-Test Hydrostatic Testers

The cost of hydrostatic testing can be reduced as much as 90% using General Pump & Equipment's 6334 Series Hydro-Test Hydrostatic Testers. These electric powered units are portable, easy to use, rugged and money saving. The test pump is designed to work best with water pressure feed but will operate with gravity feed where water pressure is not available. The 6334 Series is excellent for testing piping systems, boilers, automatic sprinkler systems, fire hoses, and extinguisher tanks.

Model 6334-350 testers are the standard of the industry for low pressure testing. Used by contractors, fire departments, and fire equipment dealers thousands of times each working day.

Your Hydro-Test Hydrostatic tester is cased in a powder coated 16 ga. steel box. Units are equipped with an easily adjustable relief valve that can be set for any pressure up to the maximum pressure for your unit.  Units have brass and stainless steel fittings, 1/2” y-strainer on inlet plumbing, glycerin filled pressure gage, high pressure check valve, 7' electrical cord, and a 10' high pressure hose. Units are tested, shipped complete, ready to operate. Power required 120 volts AC.

6334 SERIES MODELS INCLUDE:

MODEL 6334-350 350 PSI MAX 3 GPM 3/4 HP 11 AMPS @ 110 V
MODEL 6334-550 500 PSI MAX 2 GPM 3/4 HP 11 AMPS @ 110 V
MODEL 6334-550-1 500 PSI MAX 3 GPM 1 HP 13 AMPS @ 110 V
MODEL 6334-750 750 PSI MAX 2 GPM 1 HP 13 AMPS @ 110 V
MODEL 6334-1000 1000 PSI MAX 2 GPM 1 HP 13 AMPS @ 110 V
  • MODEL 6334-250 is no longer available, however we still offer parts for the unit.
  • CT63 Cart Sold Separately

Hydrostatic Test Carts

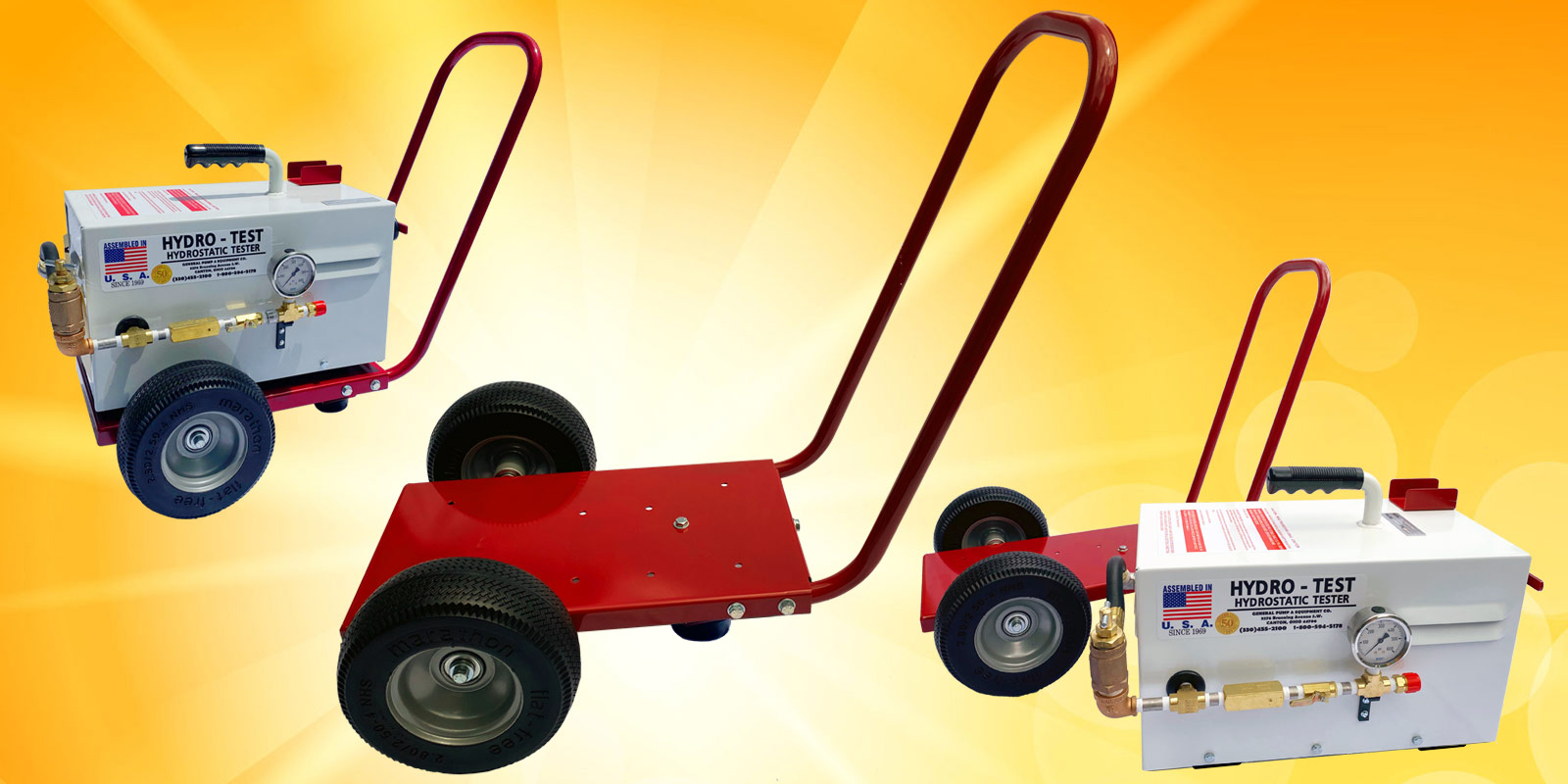

CT63 Standard Cart

Second Generation Portable Carts for 6334 Series Test Pumps

More lightweight and less expensive than our previous model, without sacrificing durability or quality!

Why carry when you can push or pull? Available as a set with a unit or can be purchased separately. Our portable carts are designed for use with all 6334 Series Hydro-Test units.

The CT63 Standard Cart can also be used with our AR1.5-500 and AR1.5-1000 Air Powered Hydrostatic Testing units.

Drafting Series Hydrostatic Testers

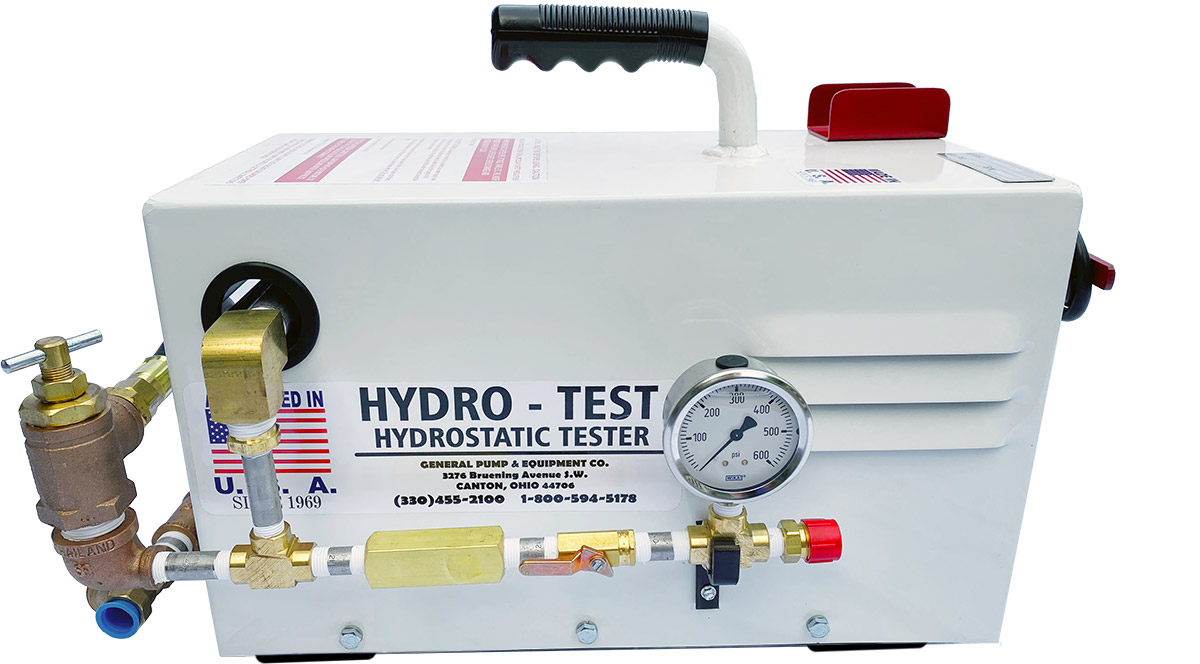

Drafting Series

Drafting units are specially designed for filling and testing systems with glycols, glycerin and water. You can draft or use water pressure feed with these units. They are excellent for testing piping systems, boilers, automatic sprinkler systems, fire hoses, and extinguisher tanks. Units are tested, shipped complete, ready to operate.

DRAFTING SERIES MODELS INCLUDE:

MODEL DR6334-350 350 PSI MAX 3 GPM 3/4 HP 11 AMPS @ 110 V
MODEL DR6334-550 500 PSI MAX 2 GPM 3/4 HP 11 AMPS @ 110 V
MODEL DR6334-550-1 500 PSI MAX 3 GPM 1 HP 13 AMPS @ 110 V
MODEL DR6334-1000 1000 PSI MAX 2 GPM 1 HP 13 AMPS @ 110 V

GP Hydro-Test Hydrostatic Testers

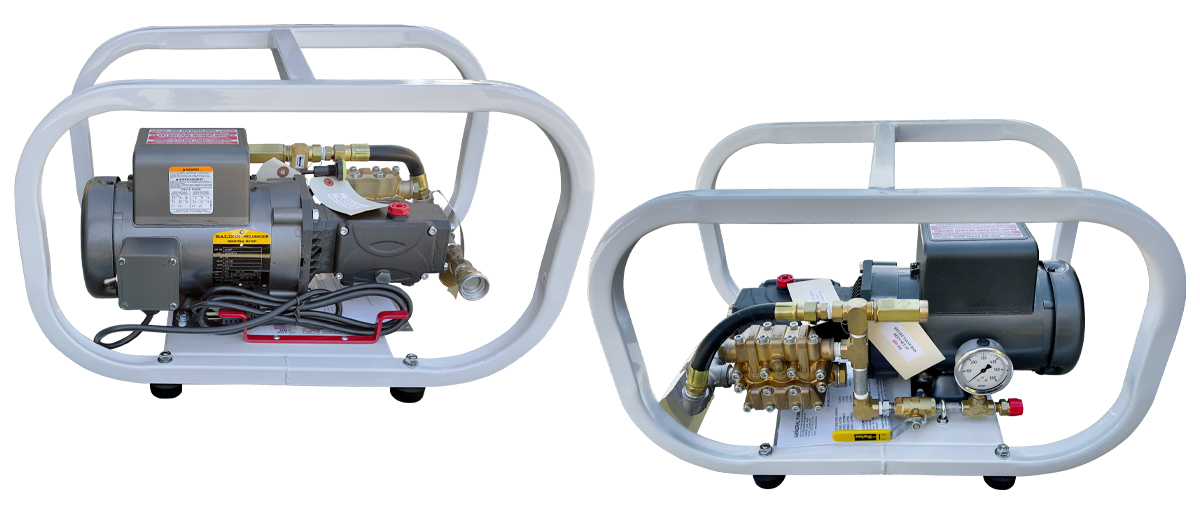

GPCG Series

All New Hydro-Test Hydrostatic Testers

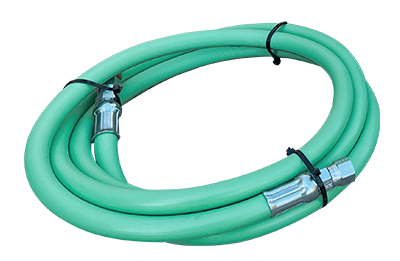

GPCG HoseThe GPCG Series units are portable and easy to use. GPCG Series units are designed to work with water pressure feed. If you need to draft look at our DR6334 Series Drafting testers, you can draft or use water pressure feed with these units. GPCG Series Units are excellent for testing piping systems, boilers, automatic sprinkler systems, fire hose and extinguisher tanks.

Units are equipped with an easily adjustable relief valve that can be set for any pressure up to the maximum pressure for your unit, brass and stainless steel fittings, 1/2" y­-strainer on inlet plumbing, glycerin filled pressure gage, 7' electrical cord, a 10' high pressure hose. Units are tested, shipped complete, ready to operate. Power required 120 volts AC.

GPCG SERIES MODELS INCLUDE:

MODEL GP350CG (Cage)  350 PSI Maximum  3 GPM  ¾ HP  1 AMPS@ 110 V
MODEL GP550CG (Cage)  500 PSI Maximum  2 GPM  ¾ HP  1 AMPS@ 110 V

HT Series Electric High Pressure Testers

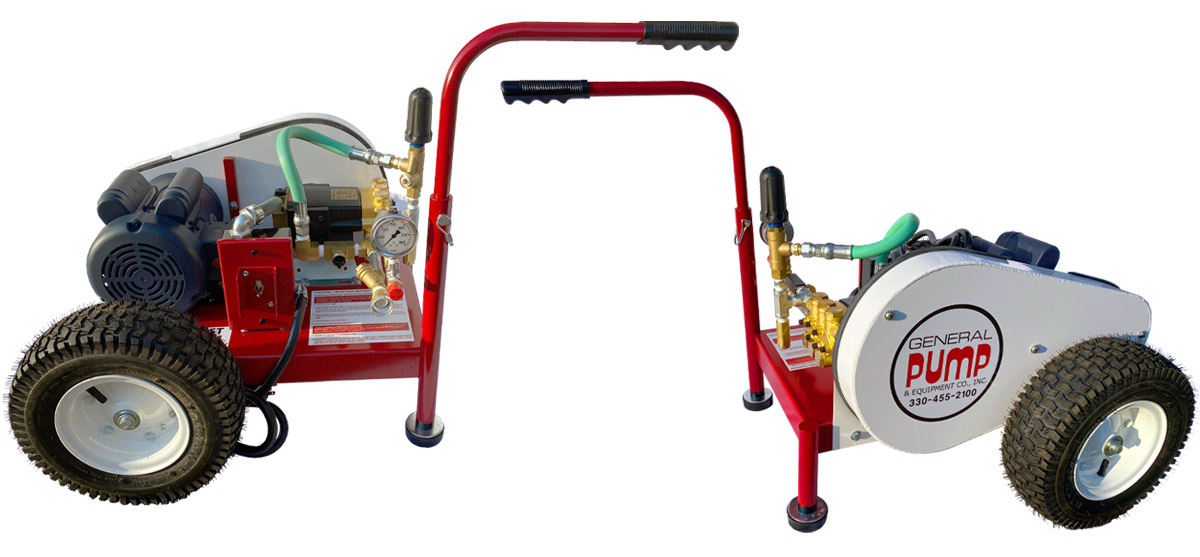

HT Series

Electric High Pressure Testers

Save time and money by hydro-testing boilers, tanks, heat exchangers, fire extinguisher tanks, piping systems, valves, fittings, and more.  All HT1.5 Series Testers are 1-1/2 HP electric and use standard 120 volt standard outlets. Units are totally portable, completely adjustable and very easy to use. Units include all necessary valves, gages and piping, and a 15' section of high pressure outlet hose is included. Units are tested, shipped complete, and ready to operate.

HT 1.5 SERIES MODELS INCLUDE:

MODEL HT1.5-2000 2000 PSI MAX 1.2 GPM 1.5 HP 19 AMPS @ 110 V
MODEL HT1.5-3000 3000 PSI MAX 1 GPM 1.5 HP 19 AMPS @ 110 V

Electric Series Instructions

Filename
An Adobe Acrobat file 6334-350_6334-550_and_6334-550-1_Instructions
An Adobe Acrobat file 6334-750_and_6334-1000_Instructions
An Adobe Acrobat file 6334_How_to_Repair_Units
An Adobe Acrobat file 6334_Pump_and_Motor_Combinations
An Adobe Acrobat file 6334_Rebuilt_Pump_Procedure
An Adobe Acrobat file 6334_Replacement_Pump_Instructions
An Adobe Acrobat file 6334_Series_Hydrostatic_Test_Pump_Overview
An Adobe Acrobat file CT63_Standard_Cart_Instructions
An Adobe Acrobat file DR6334_Series_Instructions_250_350_550_550-1_750__1000_PSI
An Adobe Acrobat file GPCG_Series_Instructions
An Adobe Acrobat file HT15-1500_Instructions
An Adobe Acrobat file HT15-2000_Instructions
An Adobe Acrobat file HT15-3000_Instructions

Electric Series Parts Lists

Filename
An Adobe Acrobat file 6334-250_and_6334-350_Parts_List
An Adobe Acrobat file 6334-550_and_6334-550-1_Parts_List
An Adobe Acrobat file 6334-750_and_6334-1000_Parts_List
An Adobe Acrobat file HT15-1500_HT15-2000_HT15-3000_Parts_List
An Adobe Acrobat file HT2000_and_HT3000_Pump_Breakdown
